BLDC fan motor
12 V DC Brushless Cooling Fan Motor
Model: BLDC-RH4214
The BLDC-RH4214 is a 15 W, 12 V DC brushless fan motor with PWM speed control, a rolling bearing rated for 30,000 hours and a noise level of ≤ 30 dB(A), designed for cooling fans, air purifiers and HVAC air movement.
- MOQ
- Project based
- Samples
- Available
- Customisation
- OEM / ODM
- Quality system
- ISO 9001:2015
Technical data
| Model | BLDC-RH4214 |
|---|---|
| Input voltage | 12 V DC (7–13 V) |
| Drive type | Single-phase DC brushless |
| Rated power | 15 W |
| Rated speed | 1500 rpm |
| Speed control | PWM, 10–60 kHz (5 V high / 0.4 V low) |
| Bearing | Rolling bearing, 30,000 h design life |
| Shaft diameter | ø8 mm |
| Noise level | ≤ 30 dB(A) |
| Protection | Locked-rotor + reverse polarity, IP54 |
| Insulation class | F |
| Compliance | RoHS |
The motor accepts 7–13 V DC and accepts a PWM signal between 10 and 60 kHz, with 5 V defined as high and 0.4 V as low. That makes it compatible with most appliance main boards without extra level shifting.
Locked-rotor and reverse-polarity protection prevent field failures caused by a stalled impeller or a miswired connector. A sealed cover option raises durability in dusty or humid installations. The 165 × 66 mm impeller format is a typical match.
Key features
- 30 dB(A) operation for bedrooms, offices and living spaces
- 30,000-hour bearing design life, maintenance free
- PWM input accepted directly by common 5 V logic
- Locked-rotor and reverse-polarity protection
- Sealed cover option for dusty or humid air paths
- Compatible with 165 × 66 mm impellers

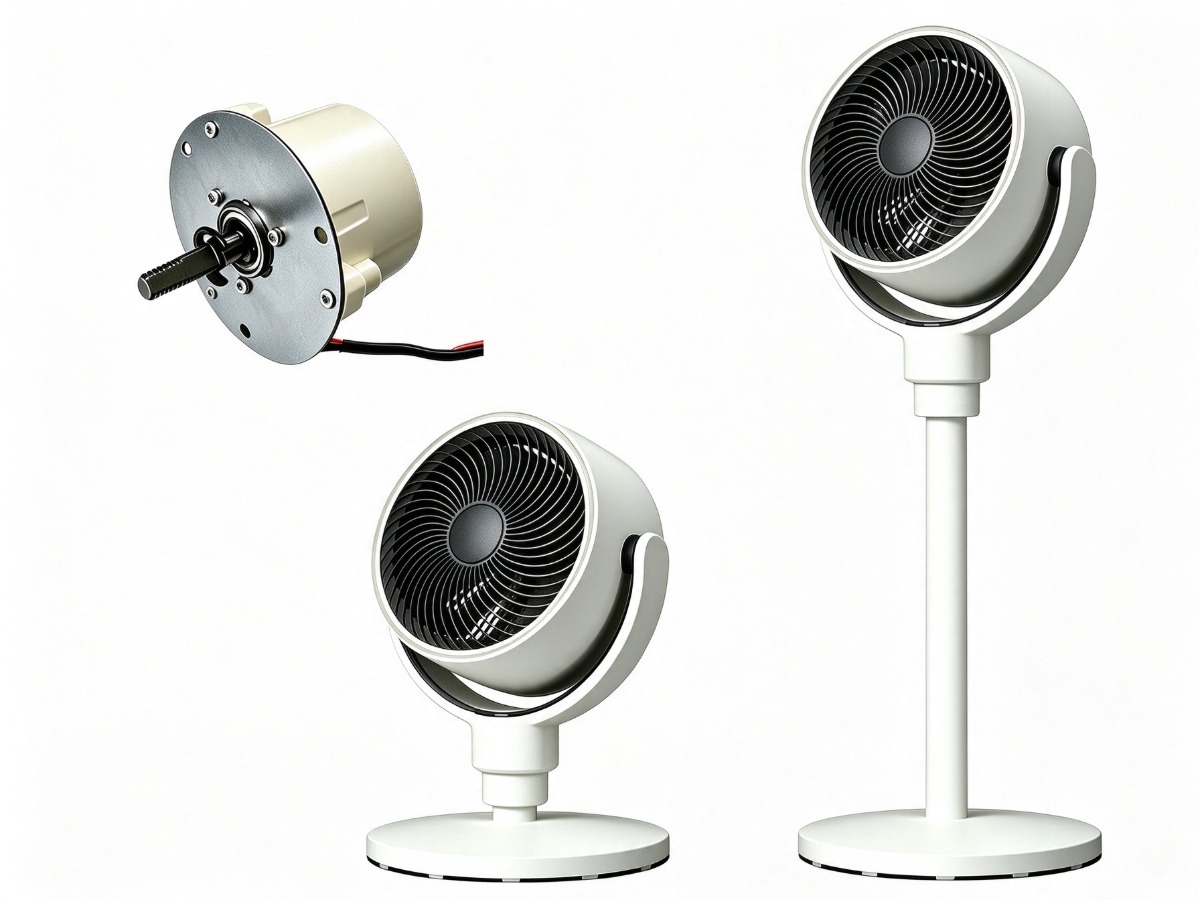

Typical applications
Customisation options
- Sealed cover for IP-critical builds
- Custom shaft, flange and lead wire
- Tach (FG) output on request
Need a motor matched to your appliance?
Send your voltage, speed, shaft and mounting requirements. Our engineering team replies with a proposal, drawing and sample plan.
