Product range

BLDC and AC Fan Motors for HVAC, Ventilation and Air Purification

Ten production models from 6 W to 400 W. Every platform can be customised on shaft, flange, lead wire, connector, voltage and rotation direction; the data below is the starting point for a quotation.

Production models

10 models · Each card links to the full technical data sheet including protection class, operating temperature and customisation options.

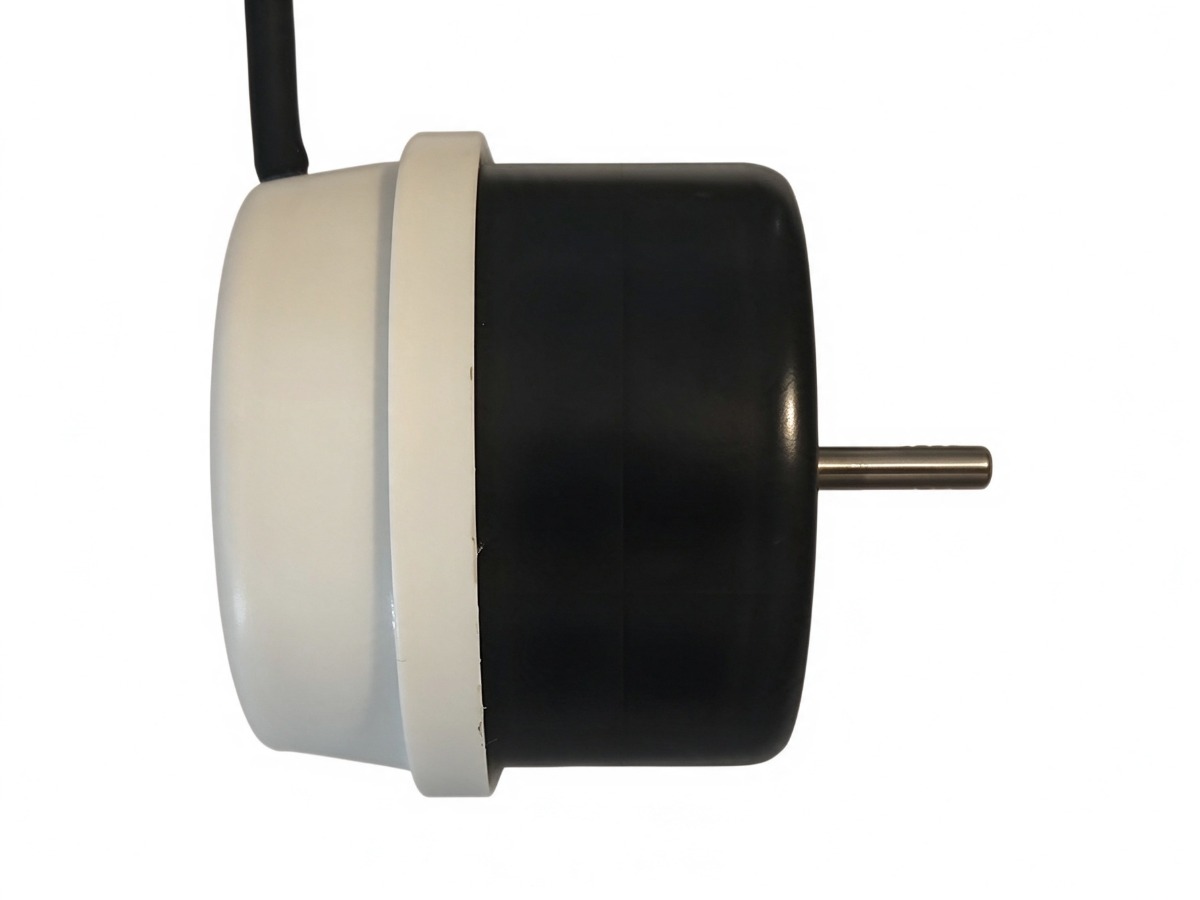

BLDC fan motor BLDC-R-MD8E

Integrated BLDC Exhaust Fan Motor

6 W · 200–240 V AC input · 2100 rpm · built-in driver

Power: 6 W
Input: AC 200–240 V
Speed: 2100 rpm

Technical data

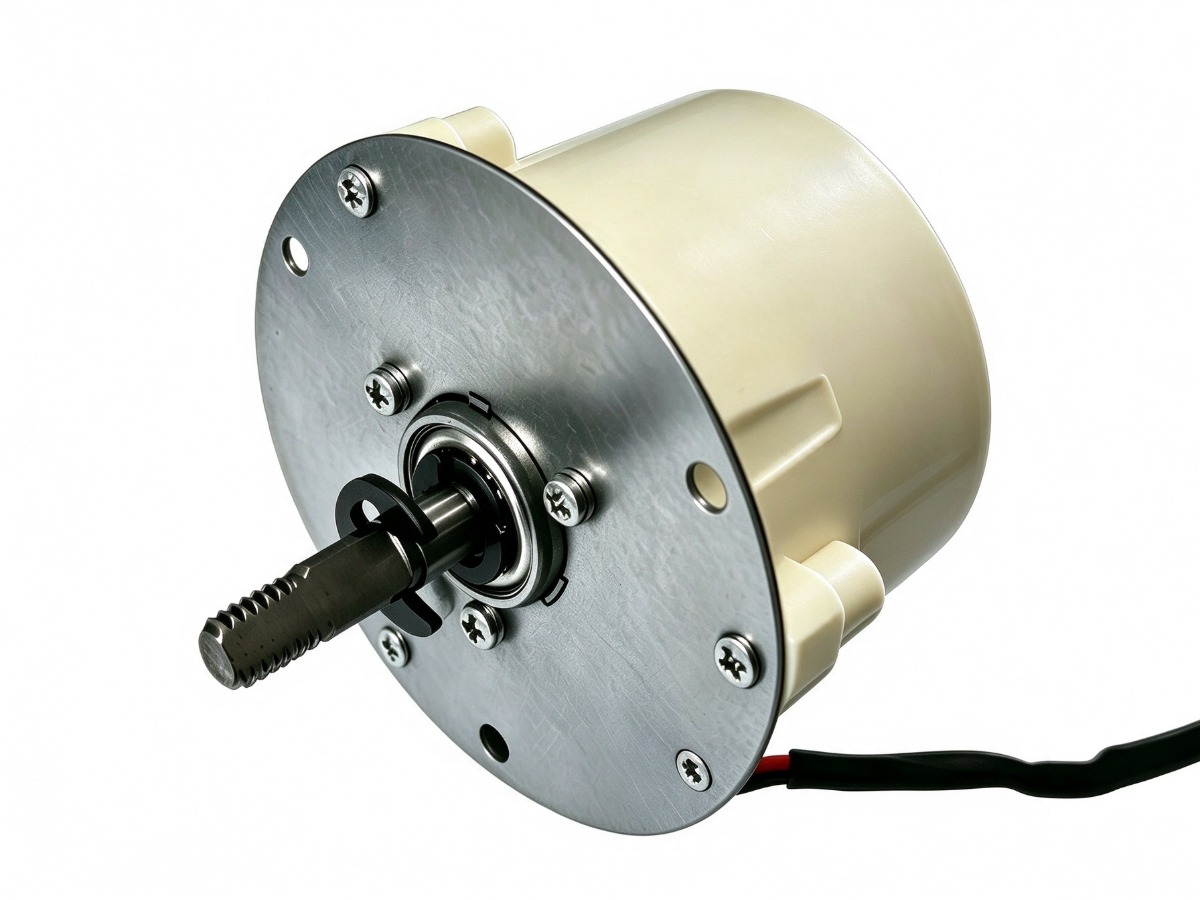

BLDC fan motor BLDC-RH4214

12 V DC Brushless Cooling Fan Motor

15 W · 12 V DC · PWM · 30 dB(A) · 30,000 h

Power: 15 W
Input: 12 V DC (7–13 V)
Speed: 1500 rpm

Technical data

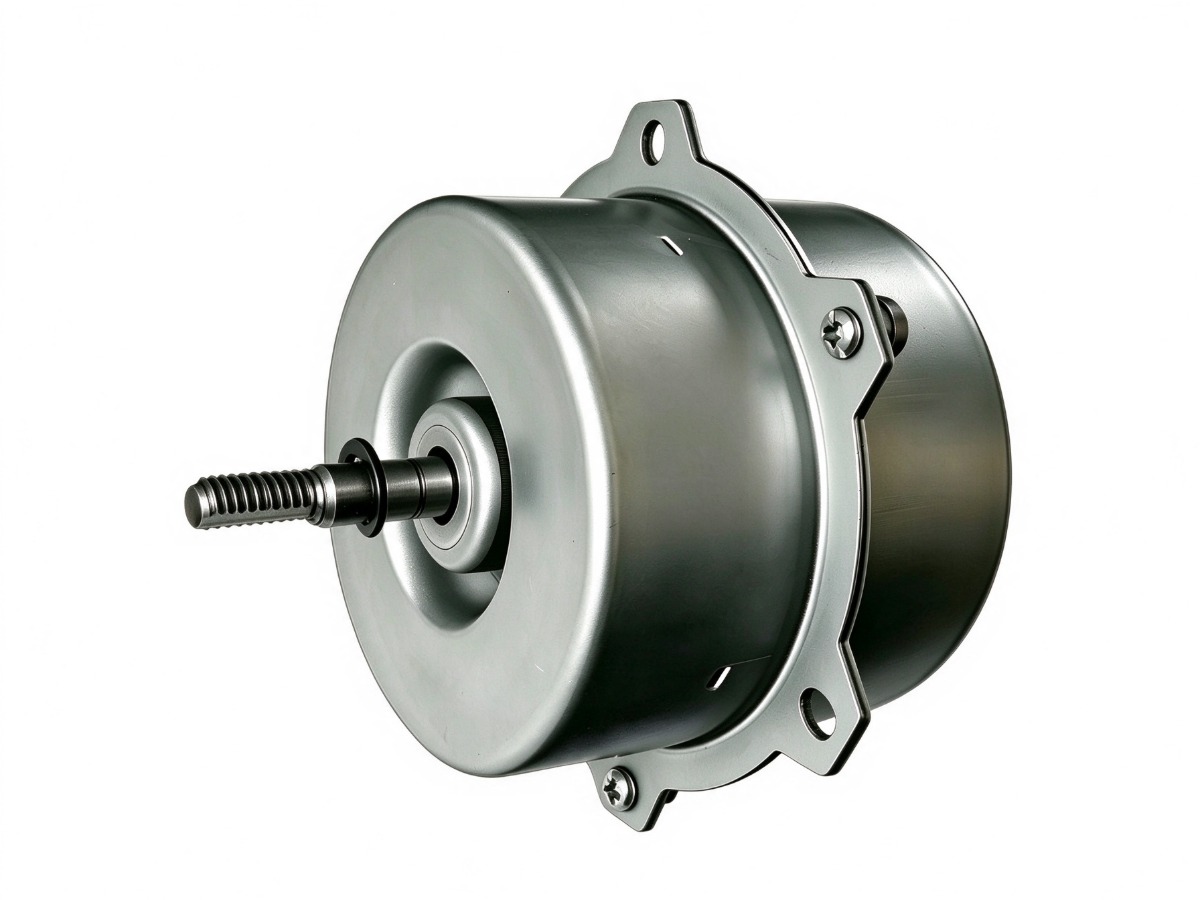

BLDC fan motor BLDC-RH7612

AC-Input Integrated Three-Phase BLDC Motor

24 W · 200–240 V AC in · 24 V DC internal · 1500 rpm

Power: 24 W
Input: AC 200–240 V
Speed: 1500 rpm

Technical data

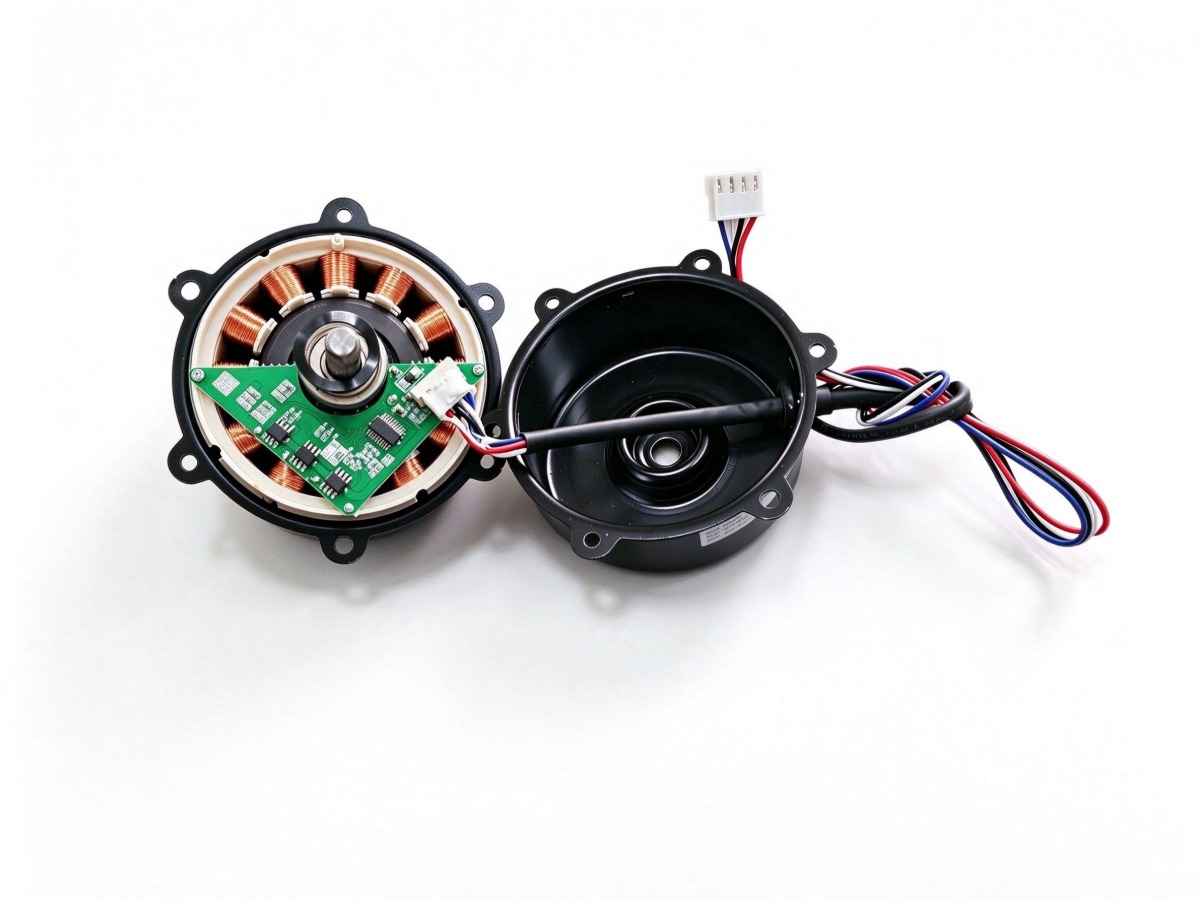

BLDC fan motor BLDC-RH8218

24 V Integrated BLDC Motor with Closed-Loop Control

48 W · 24 V DC · 3000 rpm · 5 V analog + PWM

Power: 48 W
Input: 24 V DC
Speed: 3000 rpm

Technical data

310 V high-voltage BLDC BLDC-HV310

310 V DC High-Voltage BLDC Fan Motor

200 W · 310 V DC · 94 mm stator · PWM / VSP

Power: 200 W
Input: 310 V DC
Speed: —

Technical data

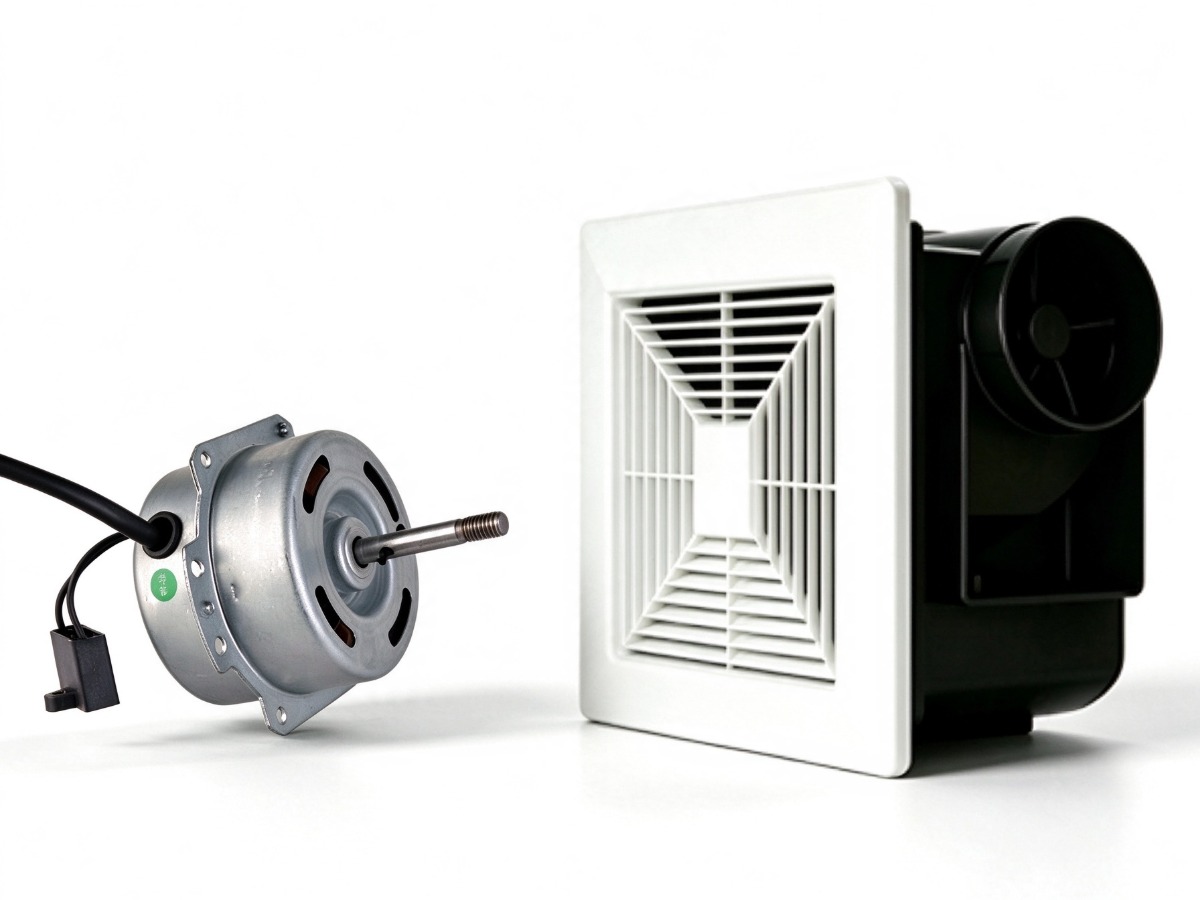

AC induction motor RH7816

AC Capacitor-Run Fan Motor, Square Flange

45 W · 110/230 V AC · 1400–1500 rpm · 4-pole

Power: 45 W
Input: 110 V AC/60 Hz or 230 V AC/50 Hz
Speed: 1400–1500 rpm

Technical data

AC induction motor RH8226

Single-Phase Capacitor Motor, Aluminium Wire

50–80 W · 110/230 V AC · aluminium winding · 4-pole

Power: 80 W (family 50–80 W)
Input: 110 V AC/60 Hz or 230 V AC/50 Hz
Speed: 1400–1500 rpm

Technical data

AC induction motor RH9437

High-Temperature Aluminium Wire Induction Motor

180 W · 110/230 V AC · thermal protector · 1400 rpm

Power: 180 W (family 80–180 W)
Input: 110 V AC/60 Hz or 230 V AC/50 Hz
Speed: 1400 rpm

Technical data

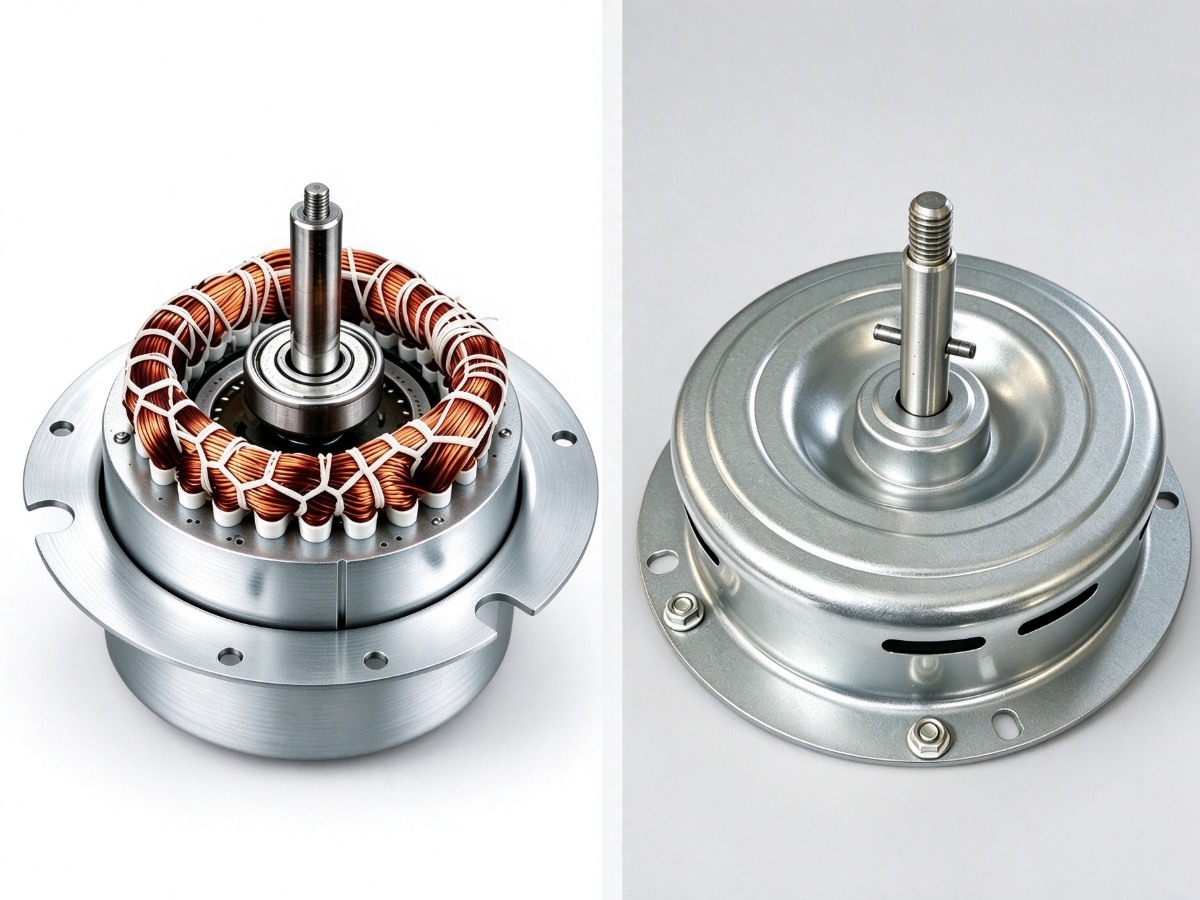

AC induction motor RH12040

120 mm Stator Capacitor Motor for Range Hoods

150–400 W · 120 mm stator · 1400 rpm · oil-proof

Power: 400 W
Input: 110 V AC/60 Hz or 230 V AC/50 Hz
Speed: —

Technical data

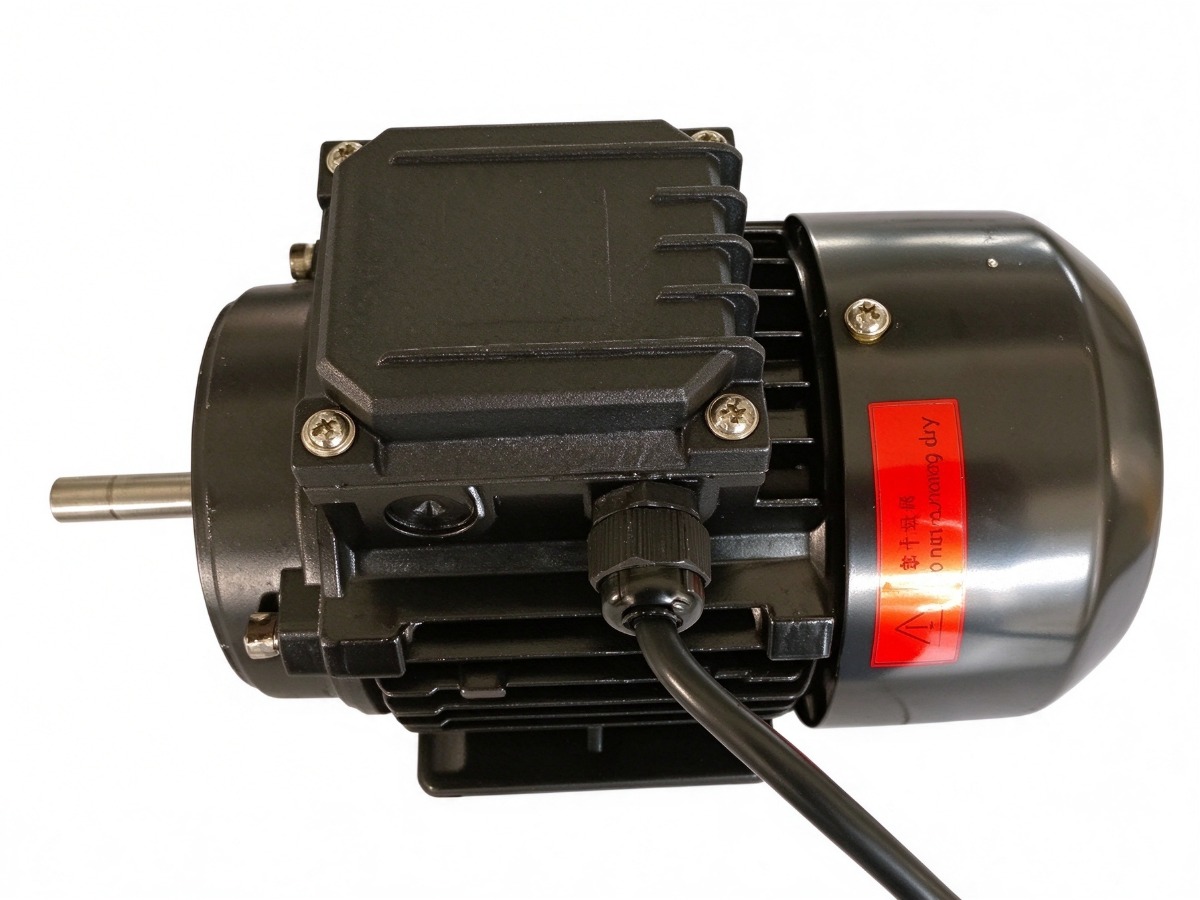

AC induction motor RH9050P

Single-Phase 2-Pole Capacitor Motor for Pumps

180 W · 230 V · 2800 rpm · pure copper winding

Power: 180 W
Input: 230 V AC / 50 Hz
Speed: 2800 rpm

Technical data

Model comparison: 6 W to 400 W

Short-list a motor by voltage, power and speed, then open the datasheet for shaft, protection class and test data.

Model	Platform	Input	Power	Speed	Shaft	Noise
BLDC-R-MD8E	BLDC fan motor	AC 200–240 V, 50/60 Hz	6 W	2100 rpm	ø4 mm	≤ 30 dB(A)
BLDC-RH4214	BLDC fan motor	12 V DC (7–13 V)	15 W	1500 rpm	ø8 mm	≤ 30 dB(A)
BLDC-RH7612	BLDC fan motor	AC 200–240 V, 50/60 Hz	24 W	1500 rpm	ø8 mm	≤ 30 dB(A)
BLDC-RH8218	BLDC fan motor	24 V DC	48 W	3000 rpm	ø8 mm	≤ 30 dB(A)
BLDC-HV310	310 V high-voltage BLDC	310 V DC	200 W	—	ø8 mm	—
RH7816	AC induction motor	110 V AC/60 Hz or 230 V AC/50 Hz	45 W	1400–1500 rpm	ø8 mm	≤ 40 dB(A)
RH8226	AC induction motor	110 V AC/60 Hz or 230 V AC/50 Hz	80 W (family 50–80 W)	1400–1500 rpm	ø8 mm	≤ 40 dB(A)
RH9437	AC induction motor	110 V AC/60 Hz or 230 V AC/50 Hz	180 W (family 80–180 W)	1400 rpm	ø8 / ø10 mm	≤ 40 dB(A)
RH12040	AC induction motor	110 V AC/60 Hz or 230 V AC/50 Hz	400 W	—	ø12 mm	≤ 40 dB(A)
RH9050P	AC induction motor	230 V AC / 50 Hz	180 W	2800 rpm	ø12 mm	≤ 40 dB(A)

Not sure which platform fits?

Send the appliance type, airflow or static pressure target and the shaft drawing. We will recommend one or two models and quote both.

Ask for a recommendation
